IP-3 & IP-3 Compliant

AQNA-3120 10-010-26..........1.0mm Tip
AQNA-3130 31-013-26..........1.3mm Tip
AQNA-3140 31-018-26..........1.8mm Tip
AQNA-3150 31-025-26..........2.5mm Tip
AQNA-3160 31-037-26..........3.7mm Tip
AQNA-3170 31-070-26..........7.0mm Cup
AQNA-3180 52-100-26..........10.0mm Cup
AQNA-3190 62-150-26..........15.0mm Cup
AQNA-3200 102-200-26..........20.0mm Cup *
AQNA-3210 31-070-16..........7.0mm Cup
AQNA-3220 52-100-16..........10.0mm Cup
AQNA-3230 62-150-16...........15.0mm Cup
AQNA-3240 102-200-16..........20.0mm Cup *
AQNA-3250 31-070-11..........7.0mm Cup
AQNA-3260 52-100-11..........10.0mm Cup
AQNA-3270 62-150-11..........15.0mm Cup
AQNA-3280 102-200-11..........20.0mm Cup *
AQNA-3290 52-037-26..........3.7mm Tip
AQNA-3300 52-070-26..........7.0mm Cup
AQNA-3310 62-100-26...........10.0mm Cup
AQNA-3320 102-150-26...........15.0mm Cup *
AQNA-3330 52-065-26..........6.5mm Cup

*Available option of round 102 background, so as to avoid potential collisions with fiduciary camera.



The above list is for most of the standard items that Fuji lists. We build nozzles to order from stocked components, so standard as well as custom nozzles built from standard components can be shipped within 24 hours from the time an order is received. Click here for a list of standard components.

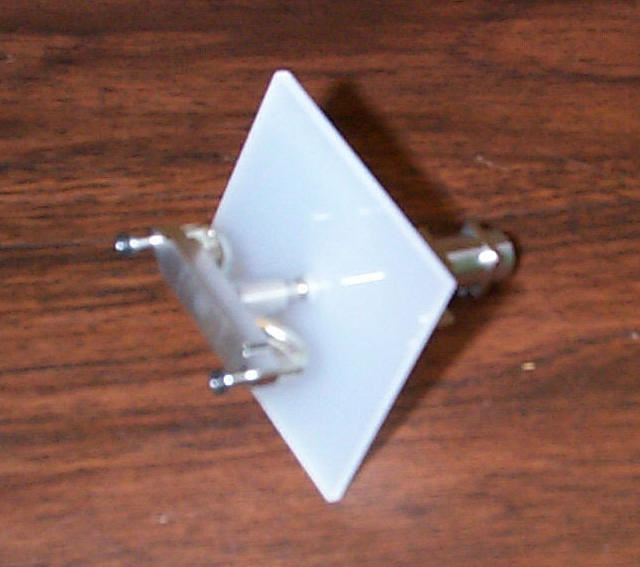

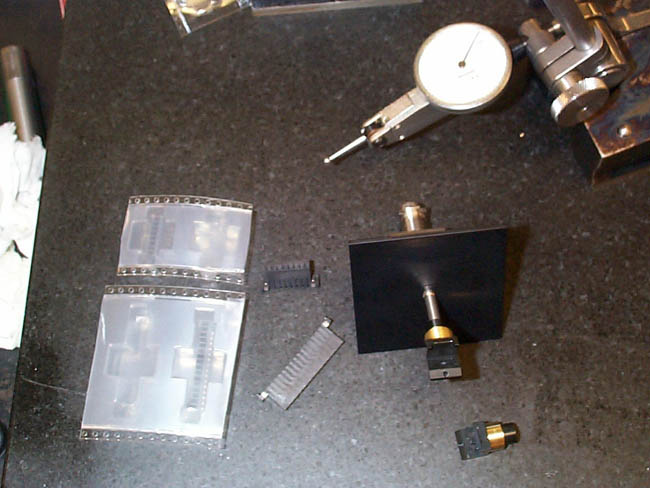

We have built hundreds of rectangular shaped nozzles and other special nozzles for placing connectors and other odds shaped components that would have required grippers or hand placement. Many of these special nozzles are in stock and can be shipped within 24 hours. Most new specials can be built within 2 weeks of our receiving suitable drawings or samples of the components to be placed. Click here to see some examples of specials.

IP-3 Compliant

IP3-4 O/R 4.0mm Nozzle w/O-Ring Tip
IP3-5 O/R 5.0mm Nozzle w/O-Ring Cup
IP3-6 O/R 6.0mm Nozzle w/O-Ring Cup
IP3-7 O/R 7.0mm Nozzle w/O-Ring Cup
IP3-8 O/R 8.0mm Nozzle w/O-Ring Cup
IP3-10 O/R 10.0mm Nozzle w/O-Ring Cup
IP3-12 O/R 12.0mm Nozzle w/O-Ring Cup
IP3-15 O/R 15.0mm Nozzle w/O-Ring Cup
IP3-17.5 O/R 17.5mm Nozzle w/O-Ring Cup
IP3-20 O/R 20.0mm Nozzle w/O-Ring Cup
IP3-25 O/R 25.0mm Nozzle w/O-Ring Cup
IP3-30 O/R 30.0mm Nozzle w/O-Ring Cup

Please designate desired background size.

We have the ability to design and manufacture special nozzles for placing unique or odd shaped parts with the IP-3 and QP-2 machines.  See Specials.

For a price quotation or more information regarding any of our nozzles or services, please call or email us using the information in our "Contact us" page.
